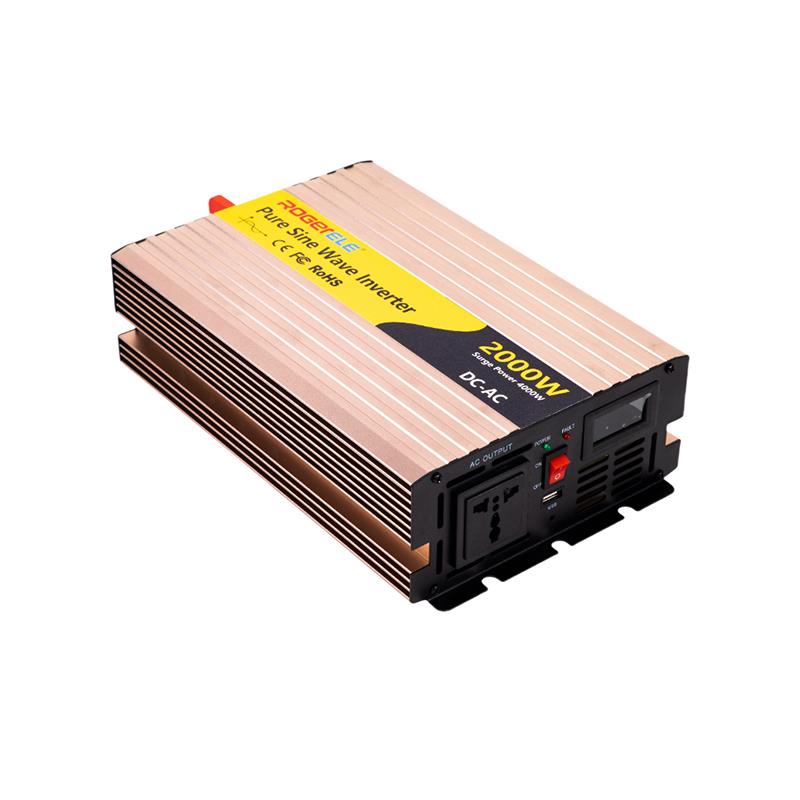

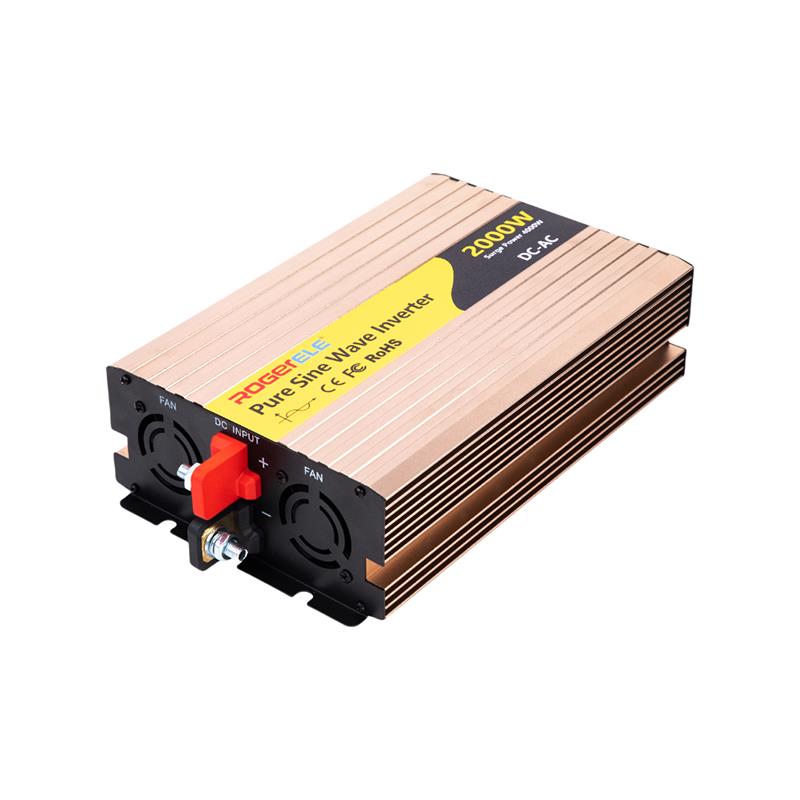

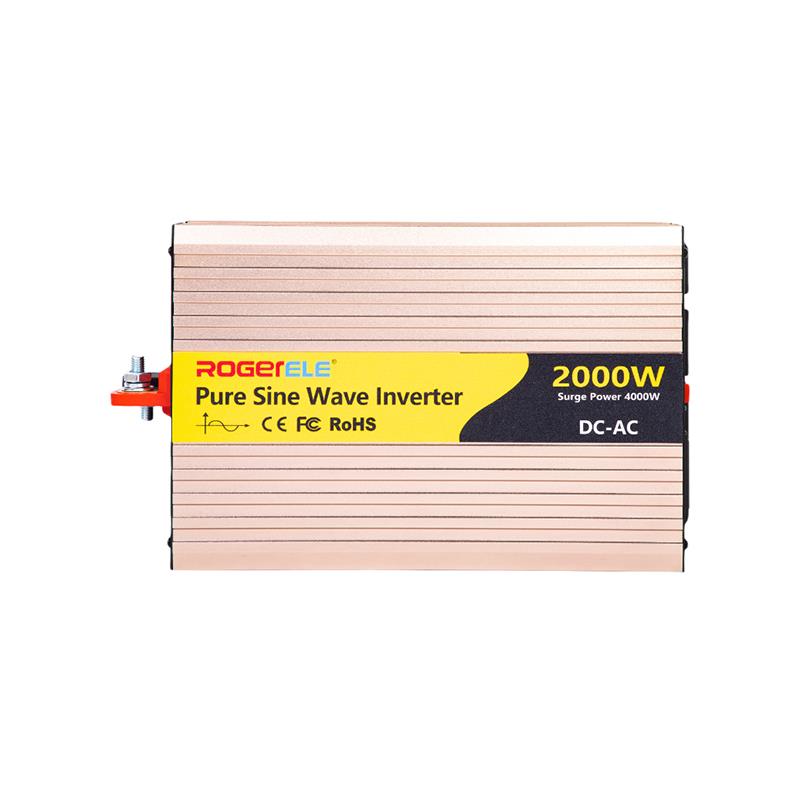

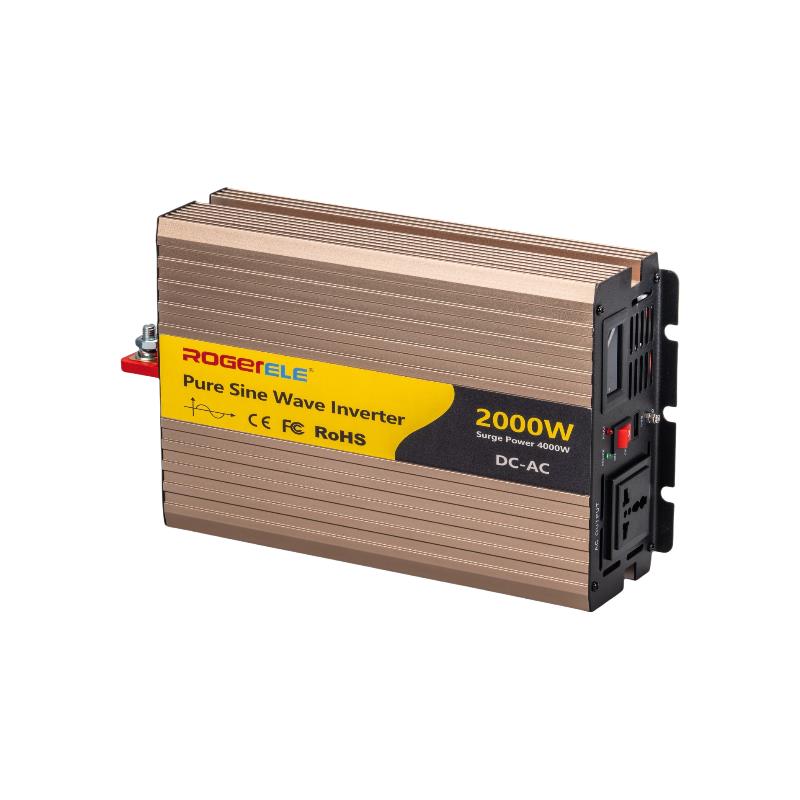

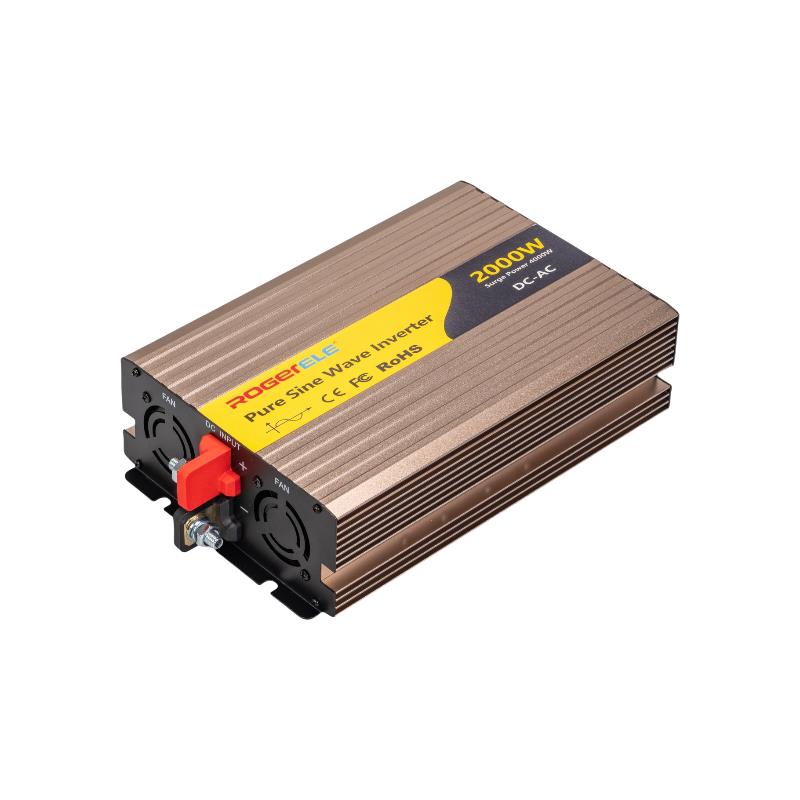

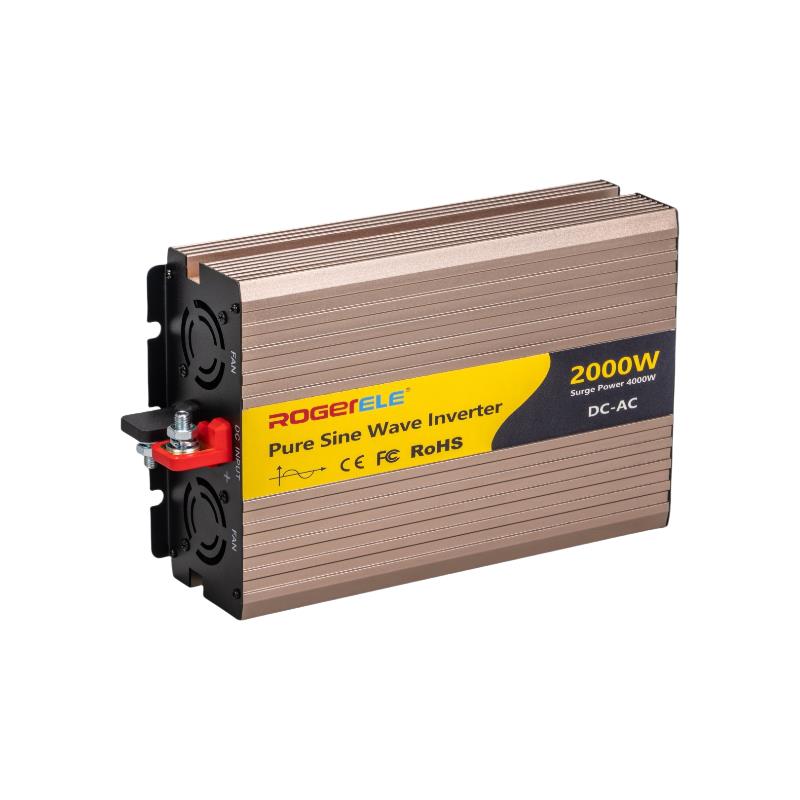

| Model | REP-B | ||
| Rated power | 2000W | ||
| Peak power | 4000W | ||
| Input voltage | DC12V | DC24V | DC48V |
| Output voltage | 220VAC or 230VAC or 240VAC±5% | ||
| Unload current less than | 0.9A | 0.5A | 0.3A |
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | ||
| Output waveform | Pure Sine Wave | ||
| Waveform distortion | THD＜3%(Linear load) | ||
| USB port | QC3.0 | / | |
| Max.efficiency | 90% | 92% | 95% |
| Input voltage range | 10-15.5V | 20-31V | 40-61V |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V |
| Low voltage protection | 10±0.5V | 20±0.5V | 40±15V |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V |
| Low voltage recover | 12.3±0.5V | 24±0.5V | 48±1V |
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V |

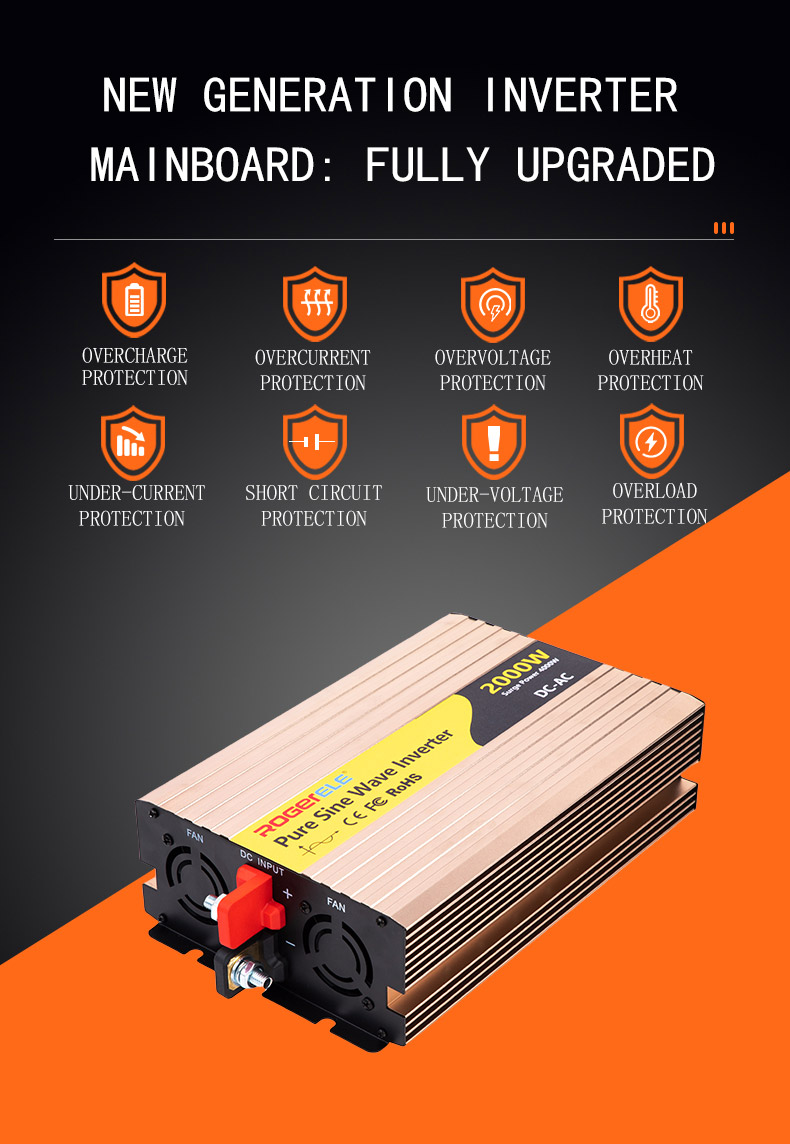

| Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | |
| Over voltage | LED Red light on, shut down | ||
| Over load | LED Red light on, shut down | ||
| Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | ||
| Short circuit | LED Red light on | ||
| Input reverse polarity | Fuse burn-out | ||
| Working temperature | -10°- 50° | ||
| Storage temperature | -30°- 70° | ||

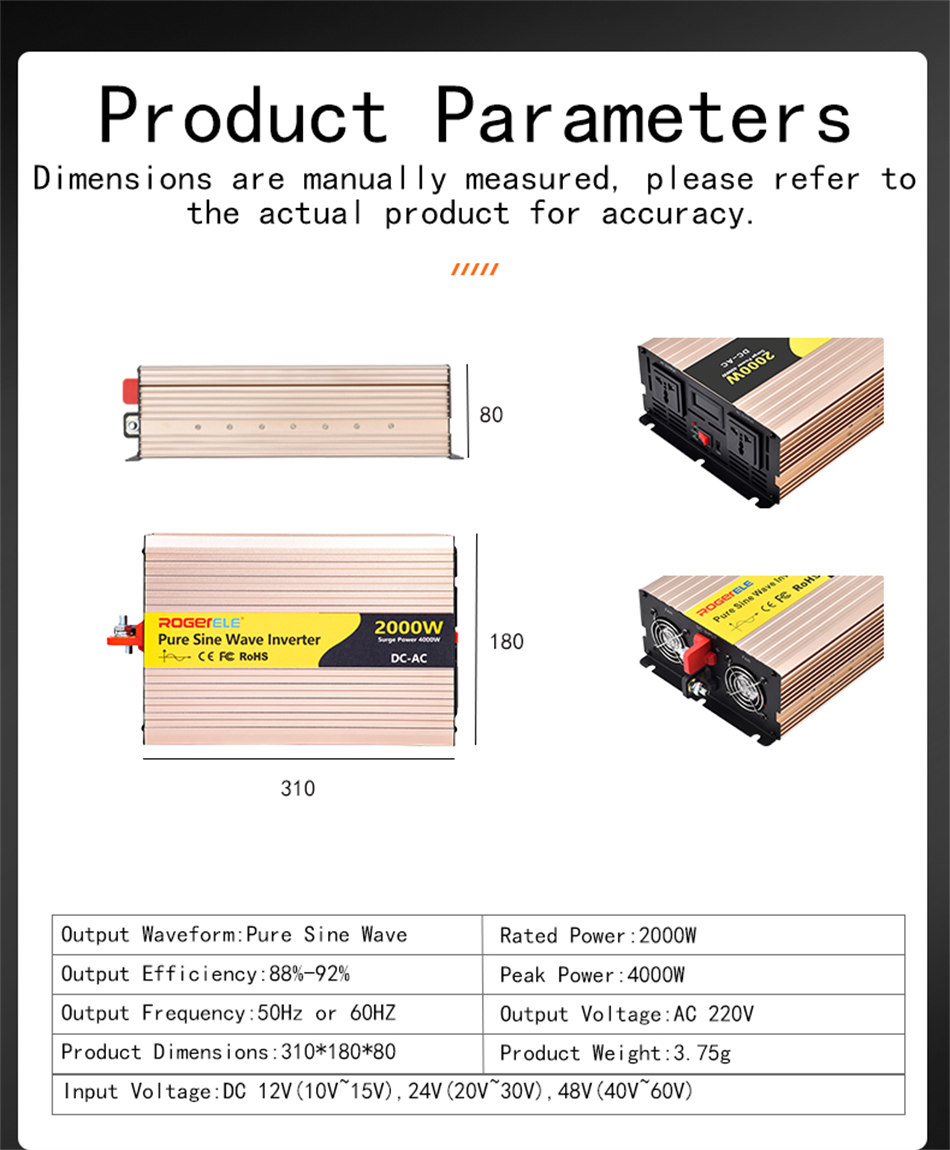

| Dimension(mm) | 310x180x80mm | ||
| Packing(mm) | 352*230*130mm | ||
| Net./gross weight(g) | 3250/3750 | ||
| QTY/Ctn | 6 Pcs | ||
| Meas./Ctn(mm) | 490*360*440 | ||
| Gross weight/Ctn(g) | |||
| Warranty | 2 years | ||
| Configuration | Standard | ||
| Cooling method | Intelligent air cooling | ||
| Custom-made available: Except for the regular DC input voltages: 12V, 24V, 48V, we also could provide customized DC input voltages: DC 36V,DC 60V,DC 72V,DC 84V,DC 96V... |
|||
