| Model | 30IR | 40IR | 50IR | 60IR | 40A96 | 50A96 | 60A96 |
| Rated voltage | 12/24/48V Auto | 48/96VAuto | |||||
| Rated current | 30A | 40A | 50A | 60A | 40A | 50A | 60A |
| Maximum protection current | 32A | 42A | 52A | 62A | 42A | 52A | 62A |
| Battery voltage identification range | 12V(DC9-DC15V)； 24V(DC18-DC30V)； 48V(DC36-DC60V）; 96V(DC72-120V） | ||||||
| MPPT Operating voltage range | 12V (DC18V~DC150V)；24V(DC34V~DC150V); 48V(DC65V-150V); 96V(DC130-DC180V） | ||||||
| Maximum PV input power | 420W | 570W | 700W | 900W | 5540W | 5600W | 6800W |
| 840w | 1130W | 1400W | 1700W | ||||
| 1650w | 2270W | 2800W | 3400W | ||||
| PV input low voltage protection point | 12V:DC16V; 24V:DC30V; 48V:DC60V; 96V:DC120V | ||||||
| PV input low pressure recovery point | 12V:DC18V; 24V:DC34V; 48V:DC65V; 96V:DC130V | ||||||
| Limit input voltage | DC170V | DC225V | |||||
| PV input overvoltage protection point | DC175V | DC230V | |||||
| PV input overvoltage recovery point | DC170V | DC225V | |||||
| charging method | 3 stage :constant currenet(MPPT),equalizing charge,float charge | ||||||
| System type | 12/24/48V Automatic identify、48/96VAutomatic identify（36V、72Vmanual setting） | ||||||
| Static power consumption | 2W | ||||||
| Machine efficiency | 96.50% | ||||||
| PV module utilization | 99.97% | ||||||
| Float voltage (can be customized) | 12V(13.75V);24V(27.5V)48V(55V);96V(110V) | ||||||
| Average charge voltage(can be customized) | 12V(14.2V); 24V(28.4V);48V(56.8V);96V(113.6V) | ||||||
| Recommended PV module voltage | 12V(18V-60V); 24V(36V-72V); 48V(72V-144V);96V(144V-180V) | ||||||
| Temperature compensation | -3mV℃/2V | ||||||
| Temperature protection | 90℃ | ||||||
| Temperature rise protection | 8 5 ° C or more to reduce power output | ||||||
| Protective function | PV array short circuit, overvoltage, overcurrent reverse polarity protection, battery overcharge, reverse protection,Under voltage protection | ||||||
| Working temperature | -10℃~ 45℃ | ||||||
| Humidity | 0~90%RH (Not condensation) | ||||||
| Altitude | 0~3000m | ||||||
| Security Level | CE、PSE、FCC、EMC | ||||||
| Mechanical protection class | IP21 | ||||||
| Optional battery type | Lead-acid battery,colloidal batteries,liquid batteries,lithium batteries (Also can be customized for other types of battery charging) | ||||||

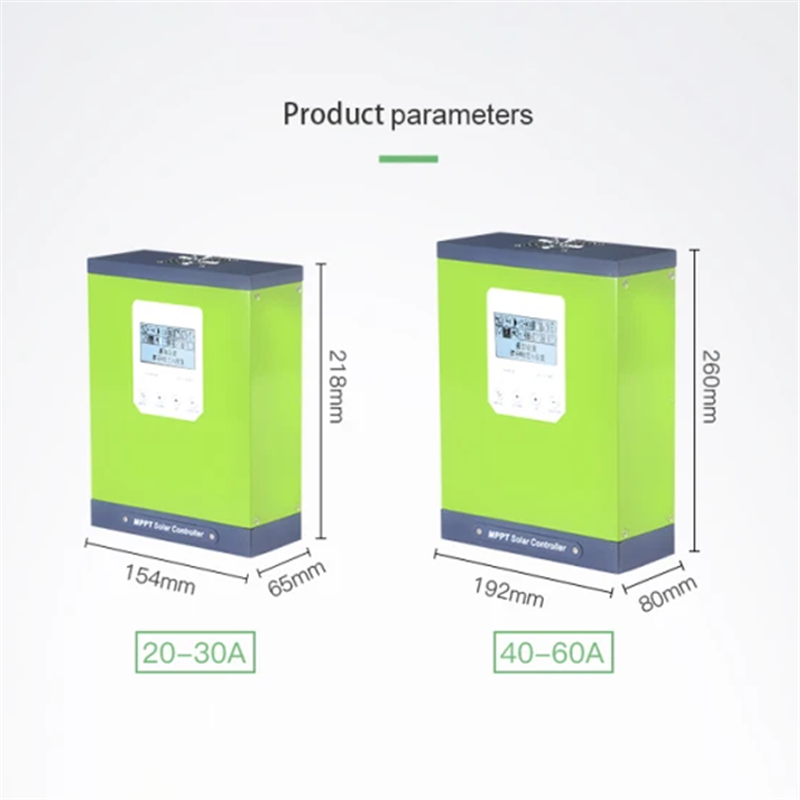

| Product Size | 218*154*65MM | 260*192*80MM | |||||
| Weight | 2KG | 3.5KG | |||||
